Learning Objectives

After completing this lesson, you'll be able to:

Describe what triggers are and how to use them.
Know the difference between internal and external actions.
List the variety of protocols available in Automations.

In this lesson, you will:

Optional: Watch a demonstration video (if you have not attended the live training).
Scroll down to read the activity instructions below and follow the steps in your lab.
Complete the quiz at the end of this lesson.
Click 'Next' to mark the lesson complete.

Learning Objectives

After completing this lesson, you'll be able to:

Describe what triggers are and how to use them.
Know the difference between internal and external actions.
List the variety of protocols available in Automations.

In this lesson, you will:

Optional: Watch a demonstration video (if you have not attended the live training).
Scroll down to read the activity instructions below and follow the steps in your lab.
Complete the quiz at the end of this lesson.
Click 'Next' to mark the lesson complete.

Build Basic Automations

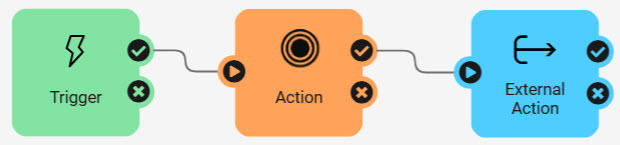

FME Flow Automations are flexible and tailored to meet your specific needs. The various triggers and actions that build an Automation primarily support this flexibility. Each trigger or action is a node. You connect nodes on the Automation canvas to control the order of events within your Automation. Nodes communicate by sending JSON messages to each other.

Triggers

All Automations begin with a trigger, which waits for an event to occur and kicks off the workflow in response. The event that a trigger waits for and listens to can come from an external client or within FME Flow.

Some common Triggers in FME Flow Automations include:

FME Flow Schedule
- Completes workflow tasks at specific times in the future.
- For example, running a workspace that processes data at a set time interval.
Resource or Network Directory
- Monitors activity on an FME Flow Resources folder or other file location, and sends JSON messages about that activity, including when additions, changes, and deletions occur to files and folders.
- For example, a file is uploaded to a shared network drive and immediately processed by a workspace.
Webhook
- Receives JSON and other data in the body of an HTTP POST, PUT, or DELETE request message.
- For example, an external application sends a webhook message that FME Flow receives and processes.

Actions

After an Automation triggers, the next event is an action. FME Flow divides actions into two categories: internal and external. Internal actions process messages and perform actions on FME Flow, like running a workspace. External actions send messages to external clients or other FME Flow processes. Usually, an internal action occurs before an external action; however, Automations are flexible. You can use them in any order and have as many actions as you need in a single Automation.

Internal actions in FME Flow Automations include:

Run a Workspace
Run a Dynamic Workspace
Log a Message
Filter Messages
Merge Messages

Some common External Actions in Automations include:

Email
- Delivers emails via the SMTP protocol.
- For example, an email informs users once their data update is complete.
FTP Directory
- Uploads files to specified FTP hosts.
- For instance, FME Flow uploads a file generated from a workspace to an FTP site.
HTTP Request
- Posts HTTP requests to a specified URL.
- For example, FME Flow sends an HTTP message containing workspace results to an external application.

For a full description of the available triggers and actions, please visit our Automations documentation.

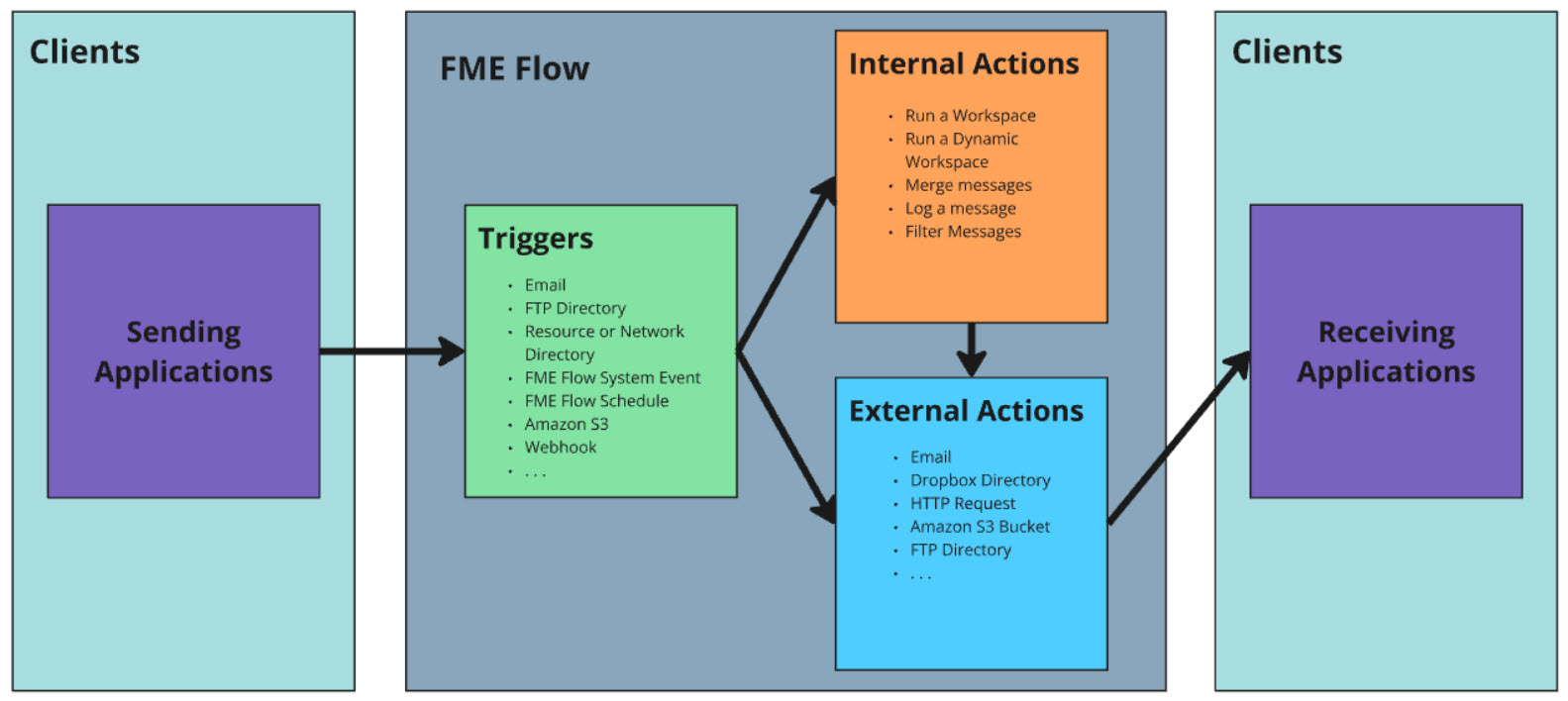

Clients

Let's look at the different components of an Automation in more detail. A client is a user or system that sends or receives a message to/from FME Flow. The client may be a physical person or just a component in a computer system. Either way, a client is usually not a core part of FME Flow but someone or something that interacts with it. Triggers receive incoming notifications from clients. Two triggers are exceptions: Schedules and System Events, in which FME Flow is the client sending the message.

For example, a database update might trigger a notification to FME Flow, in which case the database system is the client. However, a client could also be a person who, for example, triggers a notification by sending an email to FME Flow.

Actions perform internal functions within FME Flow or send outgoing notifications to clients. Again, the exception is an FME Flow Topic, where the receiving client is FME Flow to instigate other workflows rather than an external client.

Protocols

A protocol is a data exchange system between FME Flow and a client.

Automations exchange data between FME Flow and a client. Protocols are how FME Flow and the client send and receive messages. FME Flow defines each Trigger and Action using a particular communication protocol. For example, to trigger an incoming message by email, you create an Automation using an Email - SMTP Trigger. To notify a Java Message Service, you make an Automation containing a JMS Message Action.

FME Flow supports many protocols; some are available as Triggers, others as Actions, and some are available as both.

This table lists the different Trigger and Action protocols. FME Flow pre-defines the protocols; you do not need to define them in the web interface.

Protocol	Description	Trigger	Action
Amazon S3	Monitoring activity in an AWS S3 bucket/Communication to Amazon's Simple Storage Service.	Y	Y
Amazon SNS	Communication with Amazon's Simple Notification Service.	Y	Y
Amazon SQS	Communication with Amazon's Simple Queue Service.	Y	Y
Azure Event Grid	Communication with Microsoft Azure Events.	Y	Y
Dropbox	Monitoring activity in a Dropbox folder/Communicating a notification (file) to the Dropbox web service.	Y	Y
Email (IMAP)	Receive email messages from an IMAP Server.	Y
Email (SMTP)	FME Flow itself receives email messages/Communication via an email server.	Y	Y
Filter	Test incoming messages for the presence of a specified string.		Y
FME Flow Topic	Receive/send messages to a Topic to initiate workflow processes.	Y	Y
FME Workspace	Run an FME Form Workspace published to FME Flow.		Y
FME Dynamic Workspace	Run an FME Form Workspace published to FME Flow, with the repository and workspace name coming from output keys in the Automation.		Y
FTP Directory	Monitor activity/upload a file to an FTP Site.	Y	Y
HTTP Request	Post HTTP requests to the specified URL.		Y
JMS Message	Communication with a Java Message Service.	Y	Y
Log	Write Event/Automation details to a log.		Y
Merge	Combine messages before proceeding downstream in an Automation.		Y
Resource or Network Directory	Monitor activity in FME Flow Resources or a network directory.	Y
SFTP Directory	Communication with an SFTP site.		Y
Schedule	Complete workflow tasks at specific times in the future.	Y
FME Flow System Event	Communication with FME Flow systems.	Y
UDP	Communication via a User Datagram Protocol port.	Y
WebSocket	Communication via WebSocket messages or channels.	Y	Y
Webhook	Receive messages sent as HTTP Post requests from another application.	Y

Each protocol has different parameters to configure when you add the trigger or action to the Automation. For example, when you use an Email (SMTP) external action, you must specify the SMTP server and provide credentials to access it. You will learn more about those in the following lesson. For now, focus on when you would use each protocol to automate workflows.
